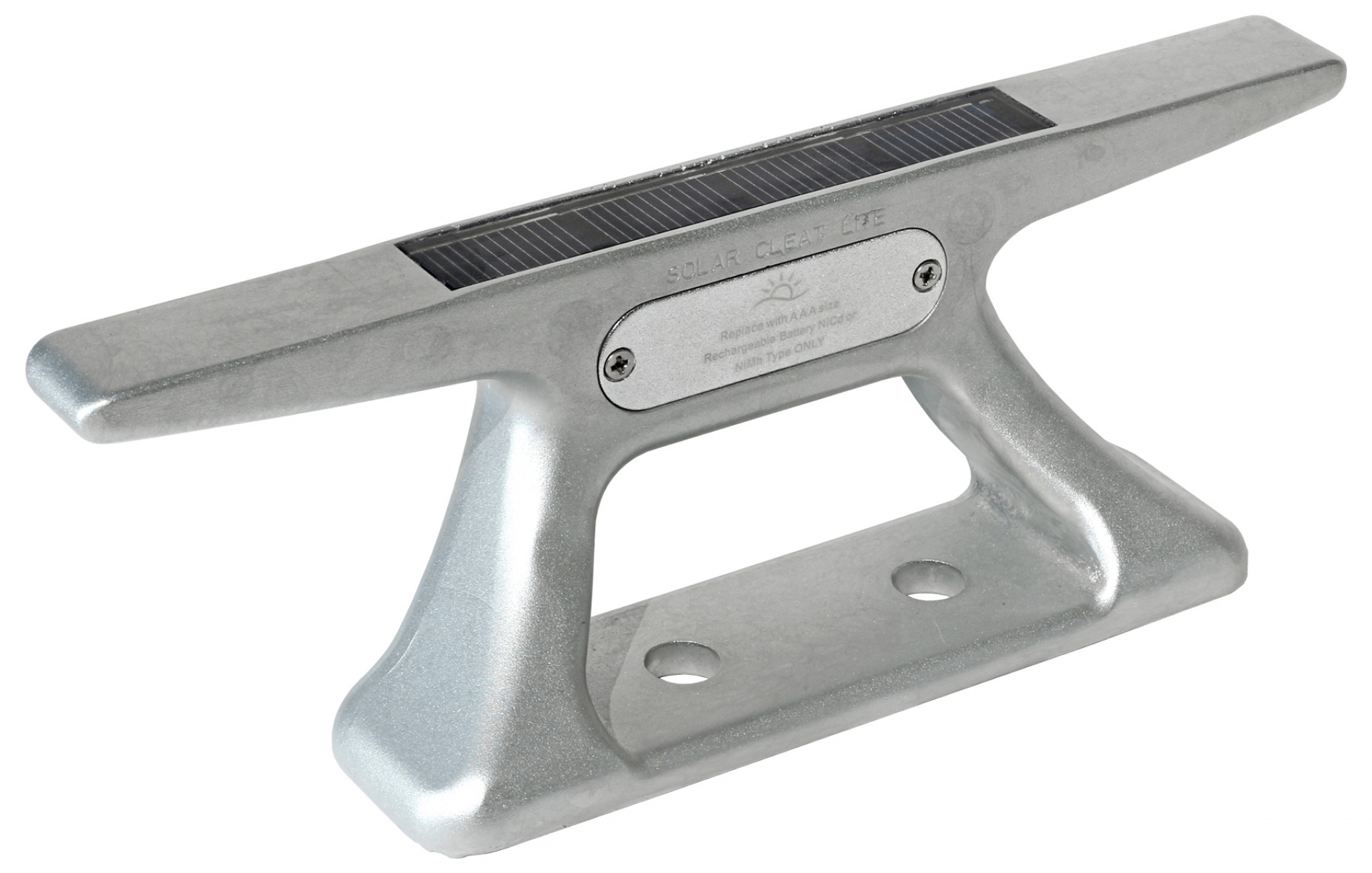

10" ALUMINUM SOLAR CLEAT LIGHT
The 10" Aluminum Solar Cleat Light is made from durable anodized marine-grade aluminum for superior protection in harsh environments. Waterproof electronics and protective design ensure longevity. Our superior quality solar panel on the surface of the cleat light stores energy in the high-grade replaceable batttery (included). An ultra high intensity white LED provides 16-20 hours of light on a full charge. Activated by darkness, the light automatically comes on at dusk. Furthermore, the 10" Aluminum Solar Cleat Light has a switch to choose from two brightness settings. This allows users to meet performance requirements (run-time) or personal preference. Mounting holes are configured for easy installation with standard hardware to any style dock and various floating docks.
Not only does the cleat light provide durable boat mooring, but added safety! Prevent tripping hazards at night and add elegance to your dock with the 10" Aluminum Solar Cleat Light.
Applications:
| Boat Docks | Yacht Clubs | Boardwalks |
| Marinas | Boat Houses | EZ Dock Floating Docks |
Sleek & Safe
The 10" Aluminum Solar Cleat Light easily mounts to all types of docks including the EZ-Dock & Wave-Armor brand floating docks.
Key Features and Benefits:
| 16-20 Hour Run Time | 8-12 Lumens | Fresh Water Rated |
| Salt Water Rated | Changeable Batteries |
|
LIGHT CHARACTERISTICS |
|
|
Light Source |
6 Ultra High Intensity LED |
|
Lumens Output |
8-12 Lumens* (Varies with Brightness level) |
|
Available LED Colors |
White |
|
Light Mode Options |
Constant |
|
Visible Range |
50m-300mm (Varies with Viewing Angles) |
|
Horizontal Output (Degrees) |
35-45° (Downward) |
|
LED Life Expectancy (Hours) |
>100,000 hrs |
|
ELECTRICAL CHARACTERISTICS |
|
|
Circuit Protection |
Integrated |
|
Nominal Voltage |
1.2v |
|
Autonomy (hours) |
16-20 hrs* (On Full Charge) |
|
Temperature Range |
-4 to 158° Fahrenheit |
|
SOLAR CHARACTERISTICS |
|
|
Solar Module Type |
Multicrystaline or Monocrystalline |
|
Power (watts) |
0.40 watts |
|
Solar Module Efficiency (%) |
16-17% |
|
POWER SUPPLY |
|
|
Battery Type |
High Grade NiCd or NiMh - ECO Friendly |
|
Battery Capacity (mAh) |
900 mAh |
|
Nominal Voltage (v) |
1.2v / Battery |
|
Battery Service Life |
1-3 years (Varies with Environment) |
|
Battery Service Access |
Yes: User Changeable/Replaceable |
|
PHYSICAL CHARACTERISTICS |
|
|
Body Material |
Die Cast Aluminum |
|
Lens Material |
UV Stabilized Poly Carbonate |
|
External Lens Design |
Integrate Convex Optics & Diffusion |
|
Internal Lens Design |
360° Convex Optics & Diffusion |
|
Waterproof Rating |
IP 68 |
|
Mounting |
Any Flat Surface or EZ-Dock Floating Dock |
|
Height |
3-1/4" |
|
Width/Diameter |
10" |
|
Weight |
1.35 lbs |
|
OPTIONS |
|
|
Custom Options, Sizes, & Colors |
Please Contact |
|
Custom Hardware & Mounting |
Please Contact |
|
* Information Subject To Change Without Notice |
|
