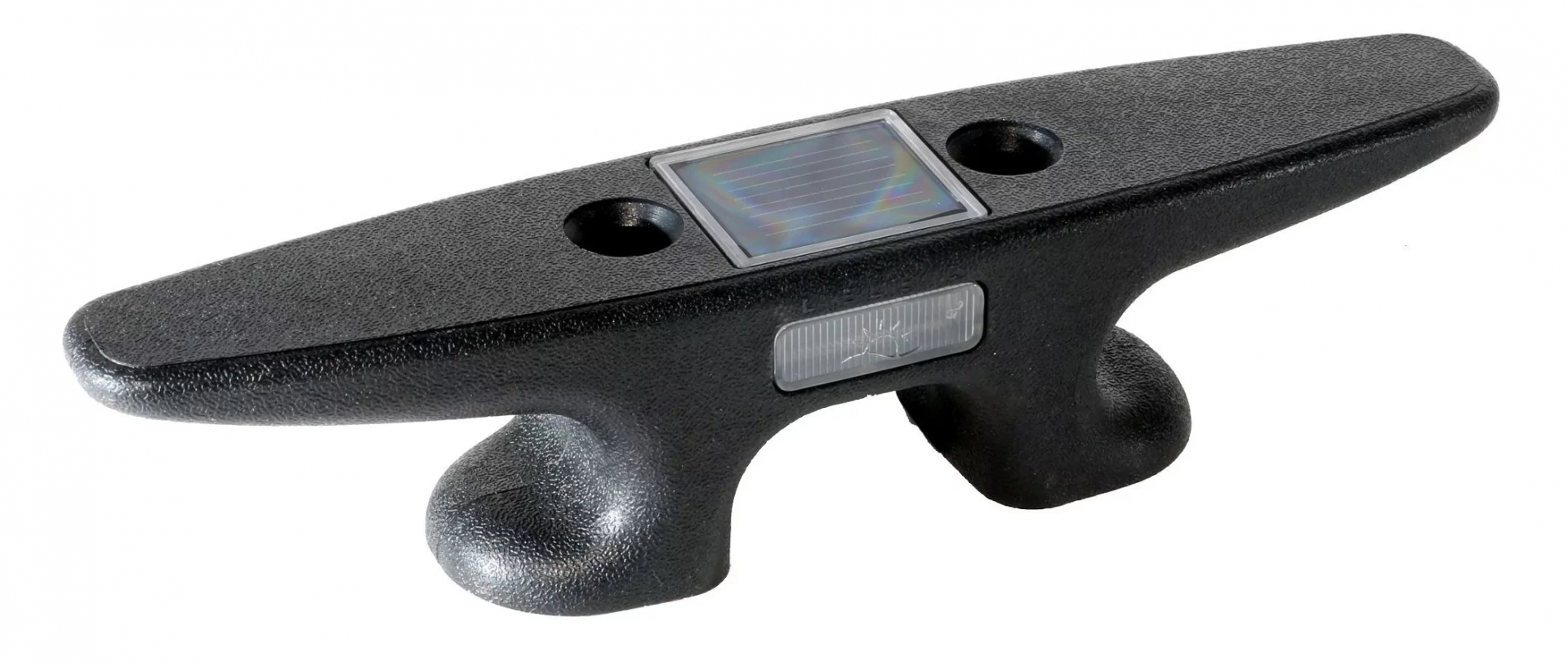

8" SOLAR CLEAT LIGHT
The 8" Nylon Solar Cleat Light is perfect for all types of docks. The same bolt pattern as most popular nylon 8" cleats, it makes a great substitute for existing 8" cleats! Easy, hassle-free lighting keeps you from tripping over cleats at night. No more stubbed toes after an evening boat ride! Easy to spot and tie up at night, makes evening boating a breeze. Two ultra high intensity LEDs illuminate outward from both sides of the cleat. Our compact, but powerful solar panel on the top surface collects the sun's energy to keep the high quality user-replaceable battery charged and ready to power the LEDs all night long.
The Solar Cleat Light easily mounts to all types of docks. The bolt patterns are exactly the same as the bolt inserts. You can even use your existing hardware and bolts! Works with other rotationally-molded floating docks that use the standard 8" nylon solar cleat light with whole spacing of 2-1/4". Mounting screws/bolts are not included, but EZ Dock Mounting Bolts can be ordered. Super bright LED's and powerful solar panel provide all-night illumination.
Applications:
| Yacht Clubs | Decks | Boardwalks |
| Marinas | Boat Houses | EZ Dock Floating Docks |
Sleek & Safe
Cleats are compatible with all types of docks including the EZ-Dock & Wave-Armor brand floating docks. The bolt pattern of the Solar Cleat Light fit exactly as the platform inserts, just use existing hardware and bolts.
Key Features and Benefits:
| 18 Hour Run Time | 6 Lumens | Fresh Water Rated |
| Salt Water Rated | Changeable Batteries |
|
LIGHT CHARACTERISTICS |
|
|
Light Source |
2 Ultra High Intensity LEDs |
|
Lumens Output |
5 Lumens* (Varies with Color & Conditions) |
|
Available LED Colors |
White |
|
Light Mode Options |
Constant |
|
Visible Range |
300m - 500+m (Varies with Viewing Angles) |
|
Horizontal Output (Degrees) |
180° (Forwards & Backwards) |
|
Vertical Divergence (Degrees) |
+30° |
|
LED Life Expectancy (Hours) |
>100,000 hrs |
|
ELECTRICAL CHARACTERISTICS |
|
|
Circuit Protection |
Integrated |
|
Nominal Voltage |
1.2v |
|
Autonomy (hours) |
14-18 hrs* (On Full Charge) |
|
Temperature Range |
-20 to 70℃ |
|
SOLAR CHARACTERISTICS |
|
|
Solar Module Type |
Multicrystalline or Multicrystalline |
|
Power (watts) |
0.25 watts |
|
Solar Module Efficiency (%) |
16-17% |
|
POWER SUPPLY |
|
|
Battery Type |
High Grade NiCdor NiMh - ECO Friendly |
|
Battery Capacity (mAh) |
300 mAh (Depending on Model) |
|
Nominal Voltage (v) |
1.2v / Battery |
|
Battery Service Life |
1-3 years (Varies with Environment) |
|
Battery Service Access |
Yes: User Changeable/Replaceable |
|
PHYSICAL CHARACTERISTICS |
|
|
Body Material |
Fiber Reinforced Nylon |
|
Lens Material |
UV Stabilized Polycarbonate |
|
External Lens Design |
Reflector |
|
Internal Lens Design |
N/A |
|
Waterproof Rating |
IP 68 |
|
Mounting |
Any Flat Surface or EZ-Dock Floating Dock |
|
Height |
TBD |
|
Width/Diameter |
TBD |
|
Weight |
TBD |
|
OPTIONS |
|
|
Custom Options, Sizes, & Colors |
Please Contact |
|
Custom Hardware & Mounting |
Please Contact |
|
* Information Subject To Change Without Notice |
|
