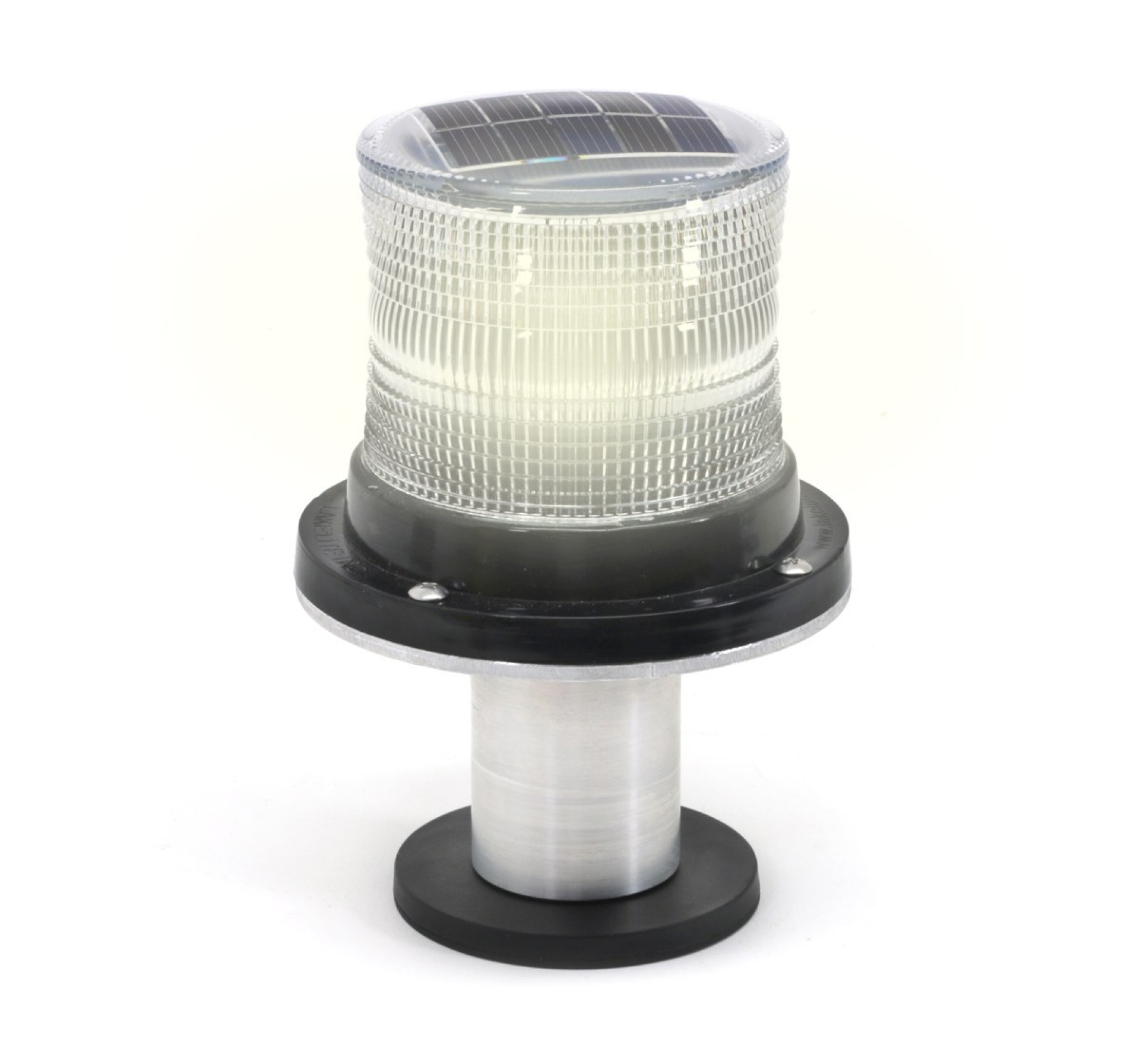

SOLAR BARGE LIGHT
Solar Barge Light is the most practical and cost effective solution for safely marking barges or boating hazards in any marine application. This is an industrial strength solar powered light designed for the harshest environments, including salt water. The Solar Barge Light is available in White, Blue, Red, Amber or Green LED colors for dock lighting and safety applications. The Solar Barge Light can be switched between flashing or constant mode with a simple switch. It has universal appications such as on boat house, safety lighting, channel markers, buoys, obstruction lighting, mooring and barge lights. Solar Barge Light can also be turned off by simply inserting the provided magnet in the light base.
Applications:
| Yacht Clubs | Docks | Buoys |
| Marinas | Boat Houses | Piers |
| Safety & Hazard Prevention | Obstructions | Barge Lights |
| Mooring Lights | Bridges | Oil Boom Lights |
Sleek & Safe
The 10" Aluminum Solar Cleat Light easily mounts to all types of docks including the EZ-Dock & Wave-Armor brand floating docks.
Key Features and Benefits:
| 30 Hour(Constant Mode) & 40-45(Flashing Mode) Run Time | 12 Lumens | Fresh Water Rated |
| Salt Water Rated | Changeable Batteries | Selectable Light Modes |
|
LIGHT CHARACTERISTICS |
|
|
Light Source |
6 Ultra-High Intensity LEDs |
|
Lumens Output |
12 Lumens* (Varies with color) |
|
Available LED Colors |
White, Blue, Green, Amber, Red |
|
Light Mode Options |
Constant & 1/sec Flashing of 5/sec. Flashing |
|
Visible Range Constant Light Mode |
0.5 - 0.75 nm (30 Hour Max Run Time) |
|
Visible Range Flashing Light Mode |
1.0 - 1.25 nm (40-45 Hour Max Run Time) |
|
Horizontal Output (Degrees) |
360° |
|
Vertical Divergence (Degrees) |
7-10° |
|
Intensity Adjustment |
Automatic for Constant & Flashing Mode |
|
LED Life Expectancy (Hours) |
>100,000 hrs |
|
ELECTRICAL CHARACTERISTICS |
|
|
Circuit Protection |
Integrated |
|
Nominal Voltage |
1.2v |
|
Autonomy (Hours) Constant Mode |
30 hrs in Constant Mode |
|
Autonomy (Hours) Flashing Mode |
40-45 hrs in Flashing Mode |
|
Temperature Range |
-22 -176° Fahrenheit |
|
SOLAR CHARACTERISTICS |
|
|
Solar Module Type |
Multicrystalline |
|
Power (watts) |
0.45 watts |
|
Solar Module Efficiency (%) |
14-16% |
|
POWER SUPPLY |
|
|
Battery Type |
High Grade NiMh - ECO Friendly |
|
Battery Capacity (mAh) |
2200 mAh |
|
Nominal Voltage (v) |
1.2v |
|
Battery Service Life |
1-3 years (Varies with local Environment) |
|
Battery Service Access |
Yes: User Changeable/Replaceable |
|
PHYSICAL CHARACTERISTICS |
|
|
Body Material |
UV Stabilized Polycarbonate |
|
Lens Material |
UV Stabilized Polycarbonate |
|
External Lens Design |
Fresnal Lens |
|
Internal Lens Design |
360° Lenticular |
|
Waterproof Rating |
IP 68 |
|
Mounting |
4x5 mm Mounting Holes |
|
Height |
4-1/2" |
|
Width |
5-1/4" |
|
Weight/Diameter |
1.4 lbs |
|
OPTIONS |
|
|
Custom Options, Sizes, & Colors |
Please Contact |
|
Custom Hardware & Mounting |
Please Contact |
|
* Information Subject To Change Without Notice |
|
