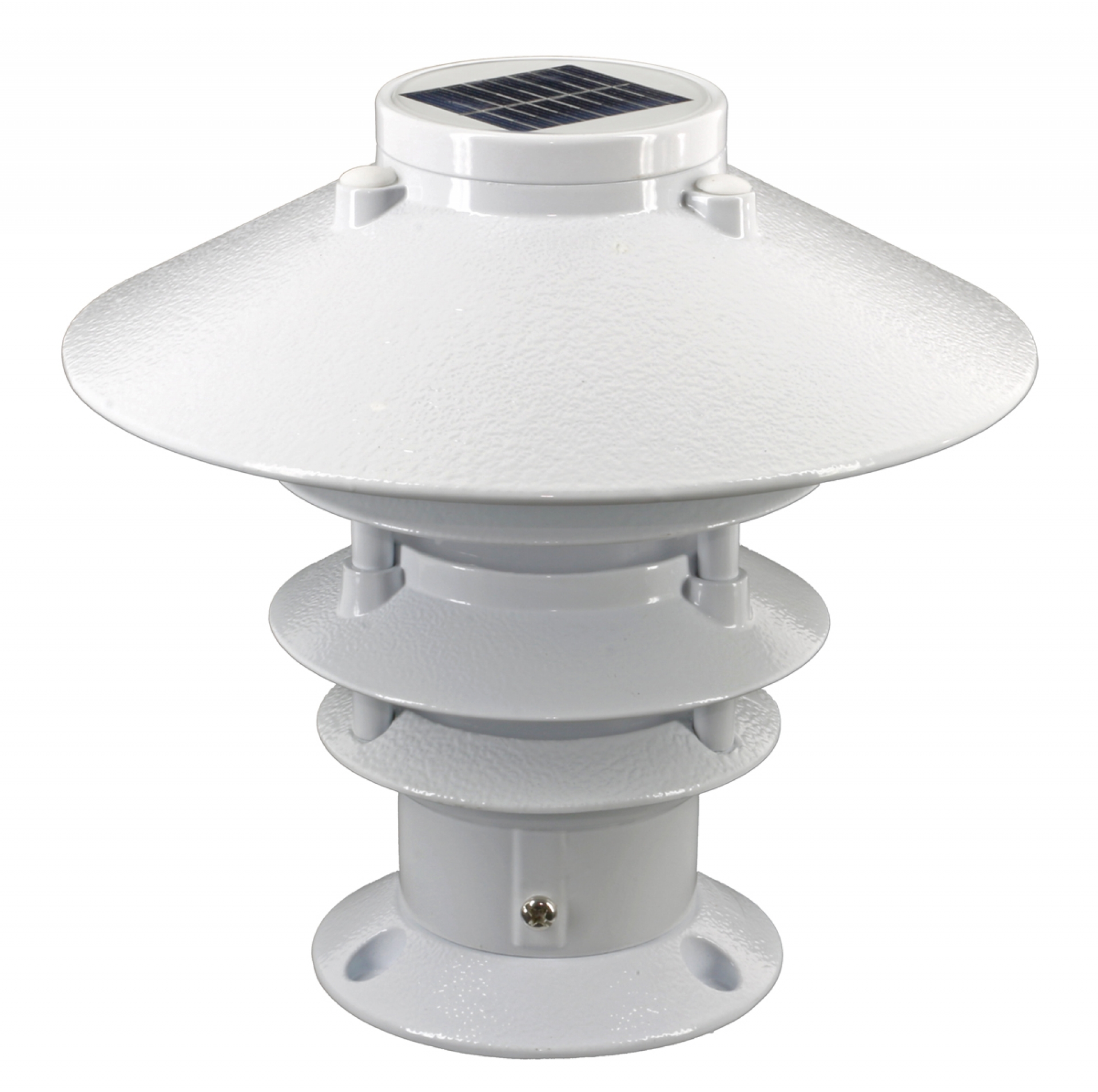

SOLAR PAGODA PILING LIGHT
Our Solar Pagoda Piling Light just got better! This newly updated Solar Pagoda Piling Light is equipped with Lake Lite's innovative patented magnet switch technology allowing users to easily adjust between brightness settings and three LED colors. Solar Pagoda Light provides a finishing touch to docks and pilings without the hassle of electrical wires. Super bright LED's illuminates the fixture to provide a soft, ambient glow that does not blind the eye. Our patented magnet technology allows a quick change of LED color (White, Blue or Amber) and intensity adjustment of the 7-brightness settings. The fast and simple brightness setting allows the user to change the light brightness and desired LED color. The Solar Pagoda Piling Light is available in white powder coat finish with built in White, Blue and Amber LED's.
Constructed of durable marine-grade aluminum with a powder coat finish, this unit is waterproof. The Solar Pagoda Piling Light includes a high capacity, user-replaceable battery that has a service life of 1-3 years. Easy to install in just minutes, illustrated instructions are included. Please also reference our website for a user-friendly installation video.
Applications:
| Docks | Pilings | Jetties |
| Pontoons | Piers | Yacht Clubs |
| Marinas | Bridges | Piles |
| Boat Houses |
Advanced Technology
The Solar Pagoda Piling Light has an advanced microprocessor control circuit which monitors every aspect of the light and has protective features to prevent overcharging, over discharging, output control, and constant brightness technology. Equipped with the industries latest LiFePo4 battery technology, the Solar Pagoda Piling Lights will run for years on the same battery.
Key Features and Benefits:
| 16-24 Hour Run Time | 3/7/12/17/23/28/35 Lumens | Fresh Water Rated |
| Salt Water Rated | Changeable Batteries |
|
LIGHT CHARACTERISTICS |
|
|
Light Source |
2-Ultra High Intensity Cree XBD LED (White/Amber/Blue) |
|
Lumens Output |
3/7/12/17/23/28/35 *Varies with Color/Brightness Setting; 7 Brightness settings adjustable with magnet |
|
LED Colors |
White, Amber & Blue |
|
Light Mode Options |
Constant |
|
Visible Range |
0.1-0.5 Nautical Miles *Varies with LED color & Brightness Setting |
|
Horizontal Divergence (Degrees) |
360° |
|
Vertical Divergence (Degrees) |
100-180° Varies with Mounting |
|
LED Life Expectancy (Hours) |
>100,000 hrs |
|
ELECTRICAL CHARACTERISTICS |
|
|
Circuit Protection |
Integrated |
|
Nominal Voltage |
3.2v |
|
Autonomy (hours) |
6-24 hrs *On Full Charge *Varies with LED color & Brightness Settings |
|
Temperature Range |
14 to 158° Fahrenheit |
|
SOLAR CHARACTERISTICS |
|
|
Solar Module Type |
Multicrystalline or Monocrystalline |
|
Power (watts) |
0.6 watts |
|
Solar Module Efficiency (%) |
16-17% |
|
POWER SUPPLY |
|
|
Battery Type |
High Capacity LiFePO4 18500 1000mA |
|
Battery Size |
18500 |
|
Battery Capacity (mAhr) |
1000 mA |
|
Nominal Voltage (v) |
3.2v |
|
Battery Service Life |
1-3 Years (Varies with local Environment) |
|
Battery Service Access |
Yes: User Changeable/Replaceable |
|
PHYSICAL CHARACTERISTICS |
|
|
Body Material |
Marine Grade Aluminum + Powder Coat |
|
Lens Material |
UV Stablilized Polycarbonate |
|
External Lens Design |
N/A |
|
Internal Lens Design |
N/A |
|
Waterproof Rating |
IP 68-Fully waterproofed |
|
Mounting |
Fits on Pilings or flat surfaces 5" diameter & larger |
|
Height |
9.75" |
|
Width/Diameter |
10" |
|
Weight |
4 lbs |
|
OPTIONS |
|
|
Custom Options, Sizes, & Colors |
Please Contact |
|
Custom Hardware & Mounting |
Please Contact |
|
* Information Subject To Change Without Notice |
|
