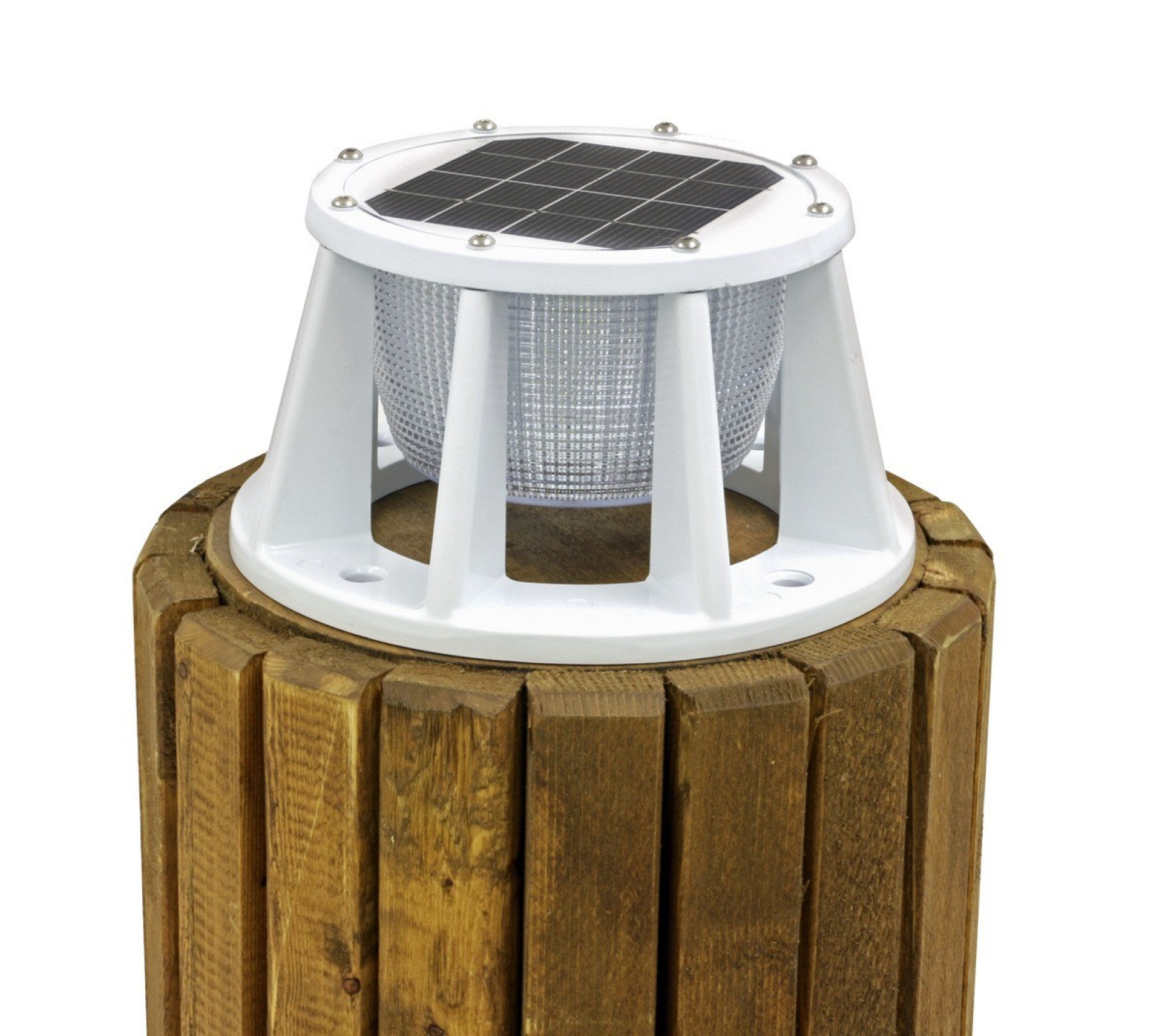

SOLAR PILING LIGHT
The 8" Solar Piling Light is the most advanced, robust, and aesthetically appealing solar piling light on the market. This newly updated solar piling light is equipped with Lake Lite's innovative patented magnet switch technology allowing users to easily adjust between 7- brightness settings and three colors! A simple swipe of the magnet quickly changes color or brightness. Throwing a party this weekend? Quickly change from white to blue light to set the mood! Want to cast a line off the dock without being noticed? Dim them down!
The 8" Solar Piling Light is equipped with 24-Super bright high-efficiency LEDs (8-White, 8-Blue, and 8-Amber) facing in a downward position to eliminate blinding eye glare and provide more ambient light. Hold a magnet for 5 seconds over the solar panel and the solar piling light will change between the illuminating colors. Swipe the magnet quickly over the solar panel to adjust between 7 brightness levels or "OFF" on any of the colors. Constructed of ASA Composite, this light is durable and salt water rated. Also, choose from White or Black finishes to suit your aesthetic dock requirements.
The Solar Piling Light has an advanced microprocessor control circuit which monitors every aspect of the light and has protective features to prevent overcharging, over discharging, output control, and constant brightness technology. Equipped with the industries latest LiFePo4 battery technology, the Solar Piling Light will run for years on the same battery and is easily replaceable.
Applications:
| Docks | Buoys | Boom Lights |
| Mooring Lights | Piers | Yacht Clubs |
| Obstructions | Bridges | Marinas |
| Boat Houses | Barge Lights | Safety & Hazard |
Piling Light provides Safety
When considering the cost of conventional lighting installation, wiring, and maintenance expenses, the Solar Piling Light will pay for itself upon installation. No need to worry about dangerous high voltage electric power and the potential of electronic hazard near the water when you use the Solar Piling Light.
Key Features and Benefits:
| 16-20 Hour Run Time | 12/24/42/60/78/96/120 Lumens | Fresh Water Rated |
| Salt Water Rated | Changeable Batteries |
|
LIGHT CHARACTERISTICS |
|
|
Light Source |
24-Ultra High Intensity LEDs (8-White, 8-Blue, 8-Amber; Adjustable with magnet) |
|
Lumens Output |
12/24/42/60/78/96/120 Lumens * (Varies with Color/Brightness Settings) |
|
Available LED Colors |
White, Blue & Amber |
|
Light Mode Options |
Constant |
|
Visible Range |
1-2+ Nautical Miles (Varies with LED color & Brightness Setting) |
|
Horizontal Divergence (Degrees) |
360° |
|
Vertical Divergence (Degrees) |
100-180° Varies with Mounting |
|
LED Life Expectancy (Hours) |
>100,000 hrs |
|
ELECTRICAL CHARACTERISTICS |
|
|
Circuit Protection |
Integrated |
|
Nominal Voltage |
3.2v |
|
Autonomy (hours) |
16-20 hrs* (*On Full Charge/*Varies with color/brightness Settings) |
|
Temperature Range |
14-158° Fahrenheit |
|
SOLAR CHARACTERISTICS |
|
|
Solar Module Type |
Multicrystalline or Monocrystalline |
|
Power (watts) |
2.2 watts |
|
Solar Module Efficiency (%) |
16-17% |
|
POWER SUPPLY |
|
|
Battery Type |
High Capacity |
|
Battery Size |
LiFePO4 |
|
Battery Capacity (mAhr) |
3000 mA |
|
Nominal Voltage (v) |
3.2v |
|
Battery Service Life |
1-3 Years (Varies with local Environment) |
|
Battery Service Access |
Yes: User Changeable/Replaceable |
|
PHYSICAL CHARACTERISTICS |
|
|
Body Material |
ASA Composite |
|
Lens Material |
UV Stablilized Polycarbonate |
|
External Lens Design |
Horizontal Lenticular |
|
Internal Lens Design |
Vertical Lenticular |
|
Waterproof Rating |
IP 68 |
|
Mounting |
Fits on Pilings or flat surfaces 8" diameter and larger |
|
Height |
4-1/4" |
|
Width/Diameter |
8" |
|
Weight |
4 lbs |
|
OPTIONS |
|
|
Custom Options, Sizes, & Colors |
Please Contact |
|
Custom Hardware & Mounting |
Please Contact |
|
* Information Subject To Change Without Notice |
|
