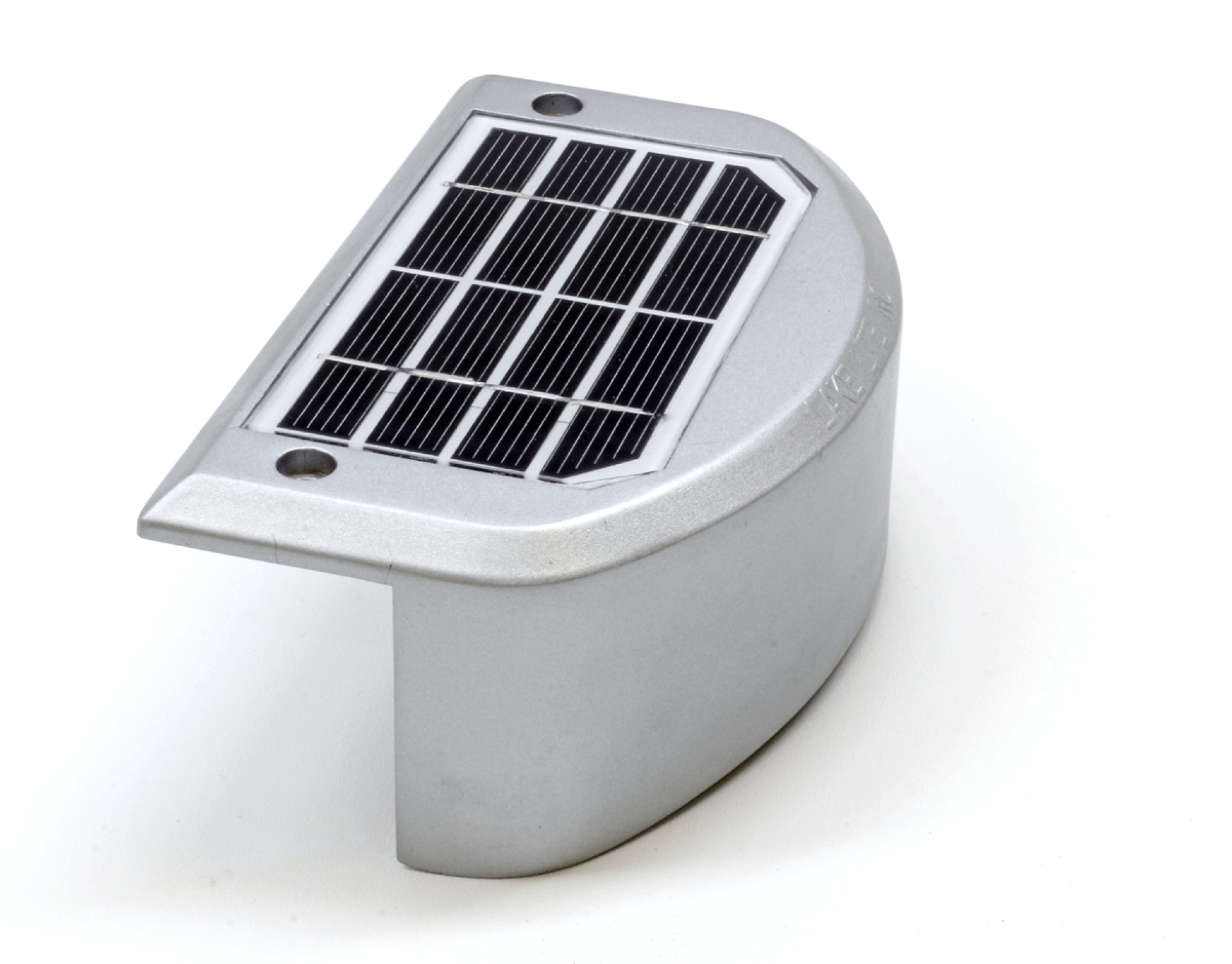

SOLAR RAIL LIGHT
Lake Lite's Solar Rail Light is the most advanced, powerful, robust solar light available. Patented magnet technology allows users to easily adjust between 7 brightness levels and 3 colors (white, blue, and amber). The downward-shining LED is concealed from view during the day, but provides an elegant ambient glow at night. Perfect for lighting up walkways, stairs, boardwalks, dock surfaces, seawalls, or dock pilings.
Tired of replacing solar lights every year? No worries! Lake Lite's Solar Rail Light is made to last! Durable new design out of ASA composite, advanced user-replaceable lithium phosphate battery (included), fully waterproof IP -68 electronics, and tempered glass laminated solar panel ensure extraordinary service life. The 7" Solar Rail Light is easily mounted in seconds!
Applications:
| Hand Rails | Seawalls | Boardwalks |
| Dock Pilings | Dock Railing | Gangways |
Key Features and Benefits:
| Made from ASA Composite | Advanced LiFePO4 Battery | 15-80 Lumens *7 Levels |
| 7 Adjustable Brightness Settings & 3 LED colors | IP 68 Waterproof Electronics | Salt Water Area Rated |
|
LIGHT CHARACTERISTICS |
|
|
Light Source |
1-Ultra High Intensity Cree LED |
|
Lumens Output |
15-80 Lumens *Varies with Brightness Levels |
|
Available LED Colors |
White, Amber & Blue |
|
Light Mode Options |
Constant |
|
Visible Range |
100m-300m+ Depending on Settings |
|
Horizontal Divergence (Degrees) |
360° |
|
Vertical Divergence (Degrees) |
180° |
|
LED Life Expectancy (Hours) |
>100,000 hrs |
|
ELECTRICAL CHARACTERISTICS |
|
|
Circuit Protection |
Integrated/Overcharge/Over |
|
Nominal Voltage |
3.2v |
|
Autonomy (hours) |
8-38 hrs* (On Full Charge) |
|
Temperature Range |
-10 to 70℃ |
|
SOLAR CHARACTERISTICS |
|
|
Solar Module Type |
Tempered Glass = Monocrystalline Cell |
|
Power (watts) |
1.0 watt |
|
Solar Module Efficiency (%) |
17-18% |
|
POWER SUPPLY |
|
|
Battery Type |
LiFePO4 (Lithium Phosphate) |
|
Battery Size |
1 pcs IFR 18650 |
|
Battery Capacity (mAhr) |
1500 mA |
|
Nominal Voltage (v) |
3.2v Battery |
|
Battery Service Life |
1-3 Years (Varies with Environment/Use) |
|
Battery Service Access |
Yes: User Changeable/Replaceable |
|
PHYSICAL CHARACTERISTICS |
|
|
Body Material |
ASA Composite |
|
Lens Material |
NA - No Lens |
|
External Lens Design |
NA - No Lens |
|
Internal Lens Design |
NA - Lens |
|
Waterproof Rating |
IP 68-Fully Waterproofed |
|
Mounting |
Fits on 1-3/4" minimum rail width |
|
Height |
2-5/8" |
|
Width/Diameter |
7" |
|
Weight |
2 lbs |
|
OPTIONS |
|
|
Custom Options, Sizes, & Colors |
Please Contact |
|
Custom Hardware & Mounting |
Please Contact |
|
* Information Subject To Change Without Notice |
|
